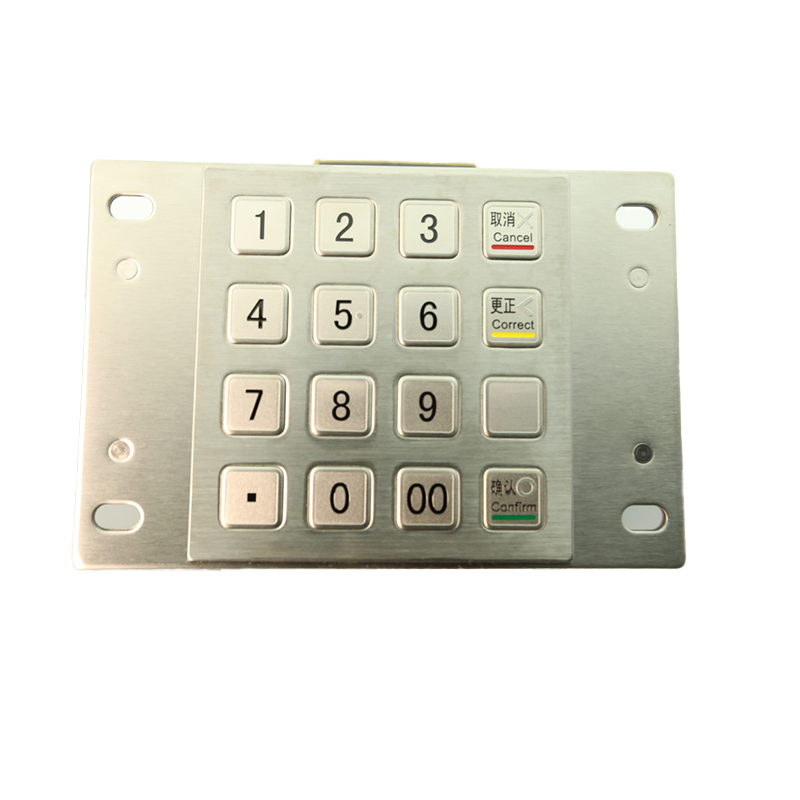

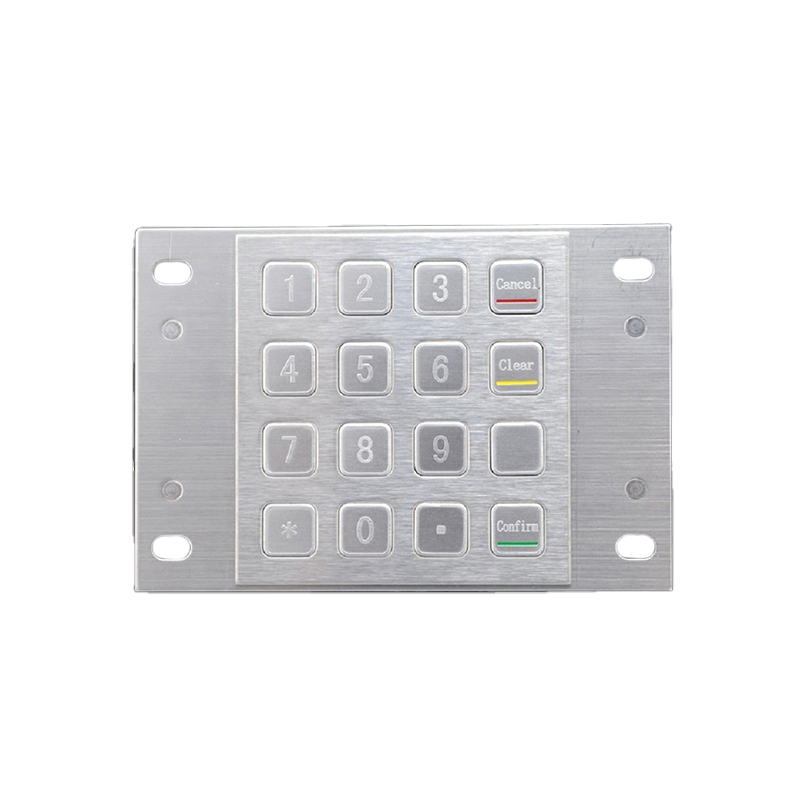

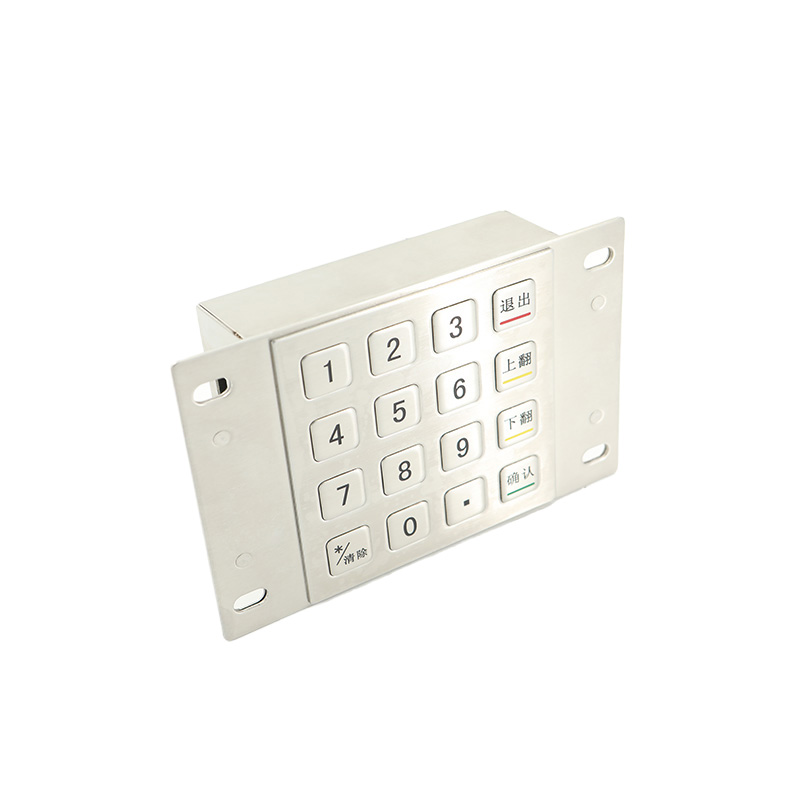

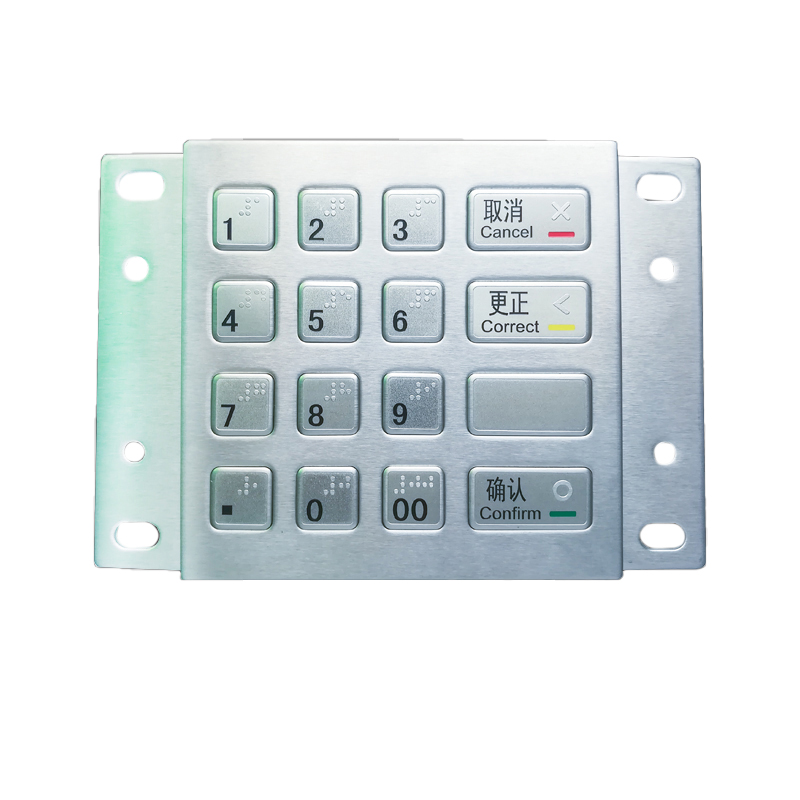

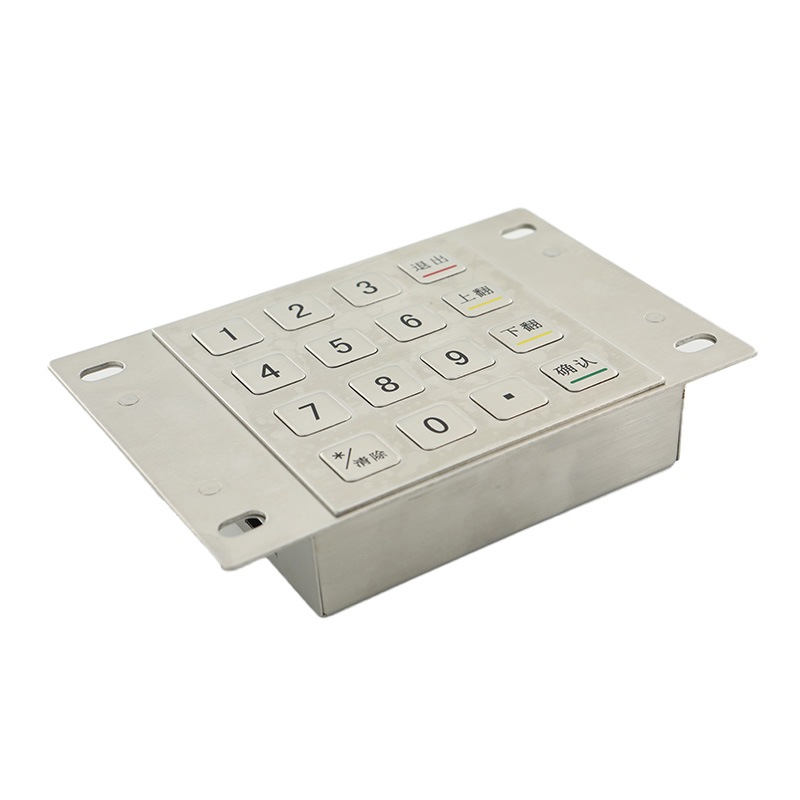

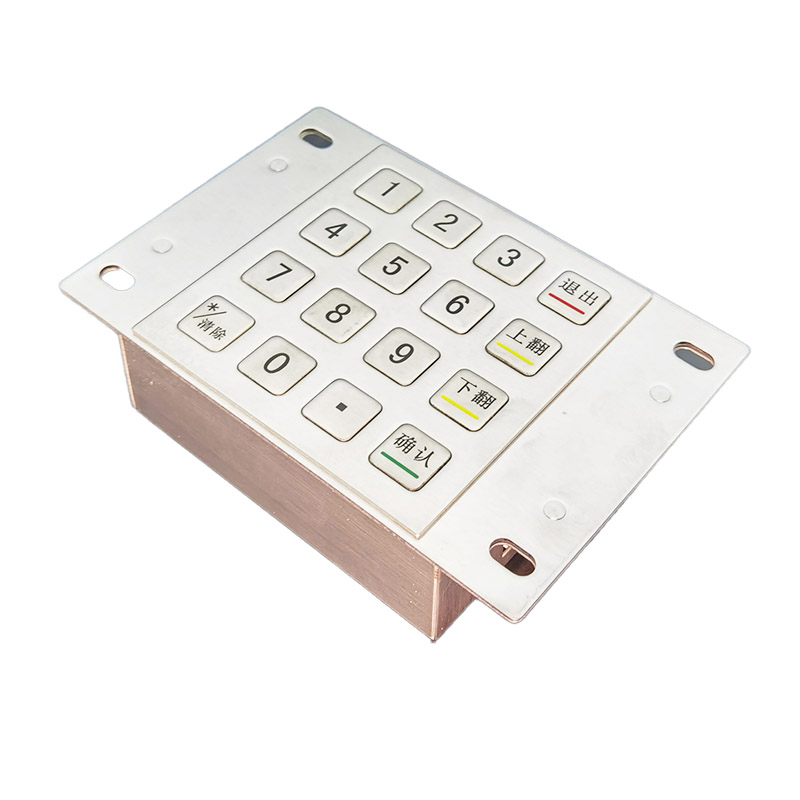

This product is a multi-function password keypad, this product has a unique design concept, does not need hardware switch to set parameters, only use power-on communication to set keyboard good parameters, no need to set in the future, can be powered off to save. For key security, it is recommended that the keyboard must be initialized with software before it works.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements
Performance indicators
1 Basic features
1.1 Support DES and TDES encryption and decryption algorithms, PIN encryption, MAC operations
1.2 High quality stainless steel brushed panel
1.3 Dustproof, waterproof, vandal-proof, shockproof, drill-proof, anti-pry-proof
1.4 Passed CE, FCC, ROHS certification
1.5 Pass the People's Bank of China bank card testing center
2 Communication parameters

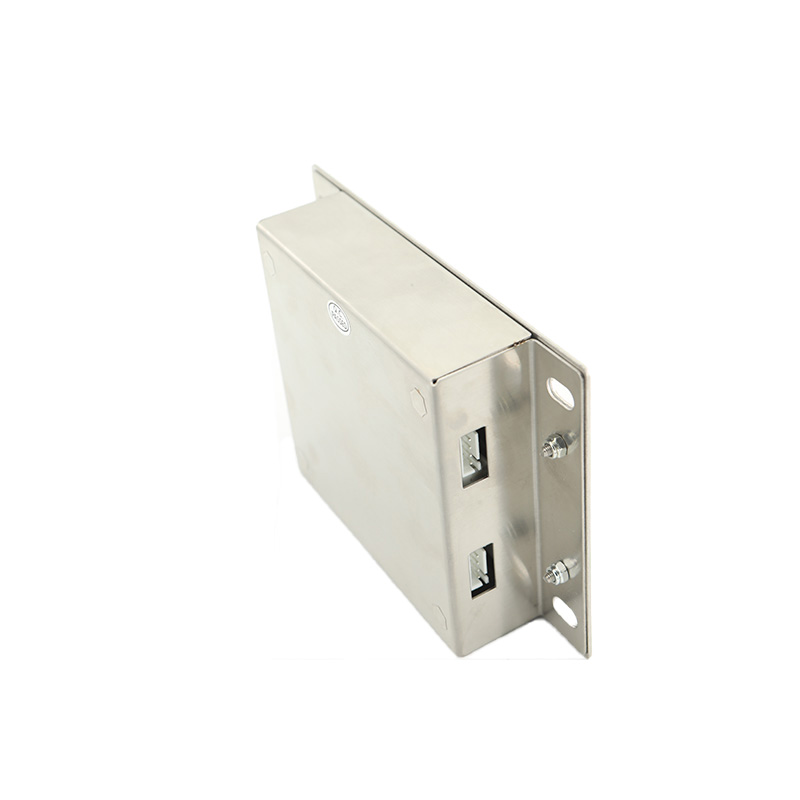

2.1 Standard RS232 serial communication interface (optional USB interface).
2.2 Baud rate: 9600
2.3 Data bits: 8 bits Test bits: None Stop bits: 1 bit
3-key keyboard
3.1 Sixteen buttons: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
Clear, confirm, exit, decimal point, flip up, flip down, matrix scan in 4×4 mode.
3.2 Function keys 8 buttons: divided into two groups on the left and right, each in a 4×1 matrix scan.
4 Specification and operation speed
4.1 Comply with the Bank Card Testing Center.
4.2 Encryption and decryption speed< 1 second.
5 Security features
5.1 The PIN will be encrypted inside the security module of the keyboard
5.2 Multi-level security management of programs and keys
5.3 The key and program are self-destructed to ensure the security of the key
6 Electrical performance
6.1 Power supply: power supply through PC, DC+5V DC power supply.
6.2 Power consumption: working state 1W or less, non-working state 100mW or less.
6.2 After the power failure key is maintained for a certain period of time, the memory data will not be lost within 5 years, and the product without battery will be stored permanently.
7 Mechanical properties
7.1 Key life can reach: more than 3,000,000 times.
7.2 Key pressure: 3-5 N (Newton).
7.3 Key travel: 0.45mm.
7.4 Key material: stainless steel.
7.5 Panel material: stainless steel.
7.6 Key surface characters: laser engraved and strongly painted.
8 Environmental adaptability
8.1 Protection level: IP65 static / IP54 dynamic
8.2 Working temperature: -20°C~+60°C
Humidity: 30~90% (under normal conditions)
8.3 Storage temperature: -30°C~+70°C
Humidity: 20~95% (no condensation)
8.4 Atmospheric pressure: 60~106 Kpa
8.5 Salt spray test: GJB-150.11A-2009
9 Reliability
9.1 Time Between Failures (MTBF) > 50000H
10 Dimensions
10.1 Length× width× Height: 140 mm× 95mm×32mm
10.2 Panel size: 87.5x91.5mm
10.3 Product weight: 0.75kg.
12 Software Support
12.1 Support multiple algorithms DES, TDES, RSA, DUKPT
12.2 Support WOSA 3.0, with SP-related materials and development libraries
12.3 Some special algorithms can be integrated according to customer requirements
3.12.4 Any character can be output according to customer requirements
3.12.5 Customers will be fully supported in the development of EPPs
