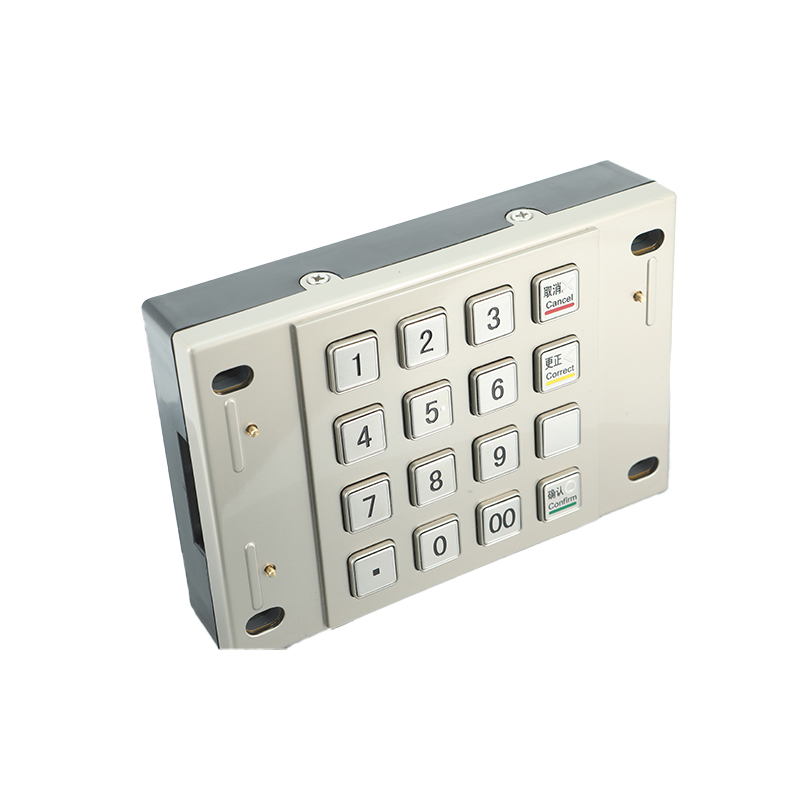

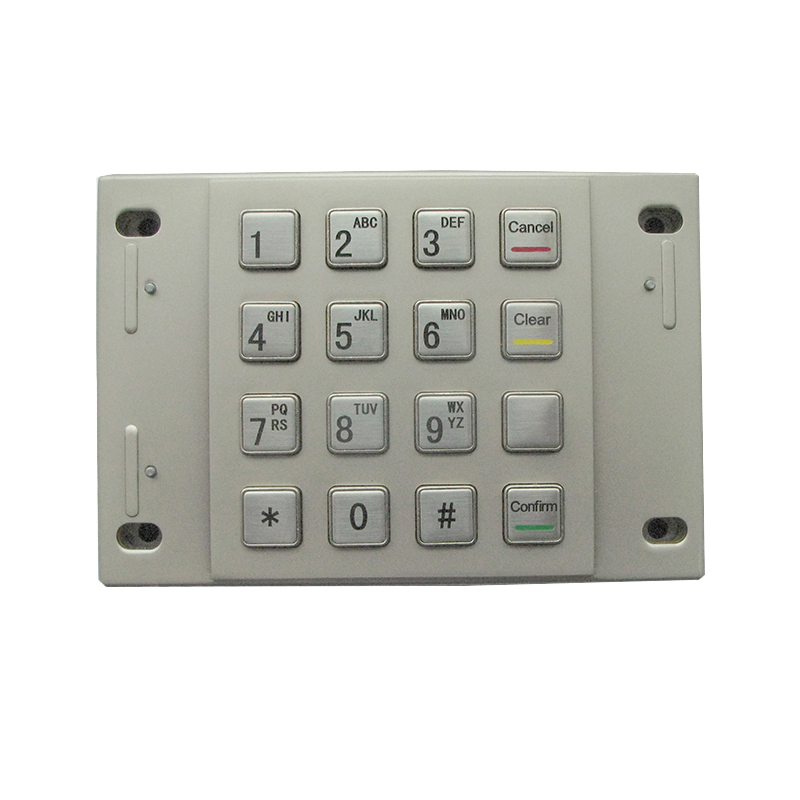

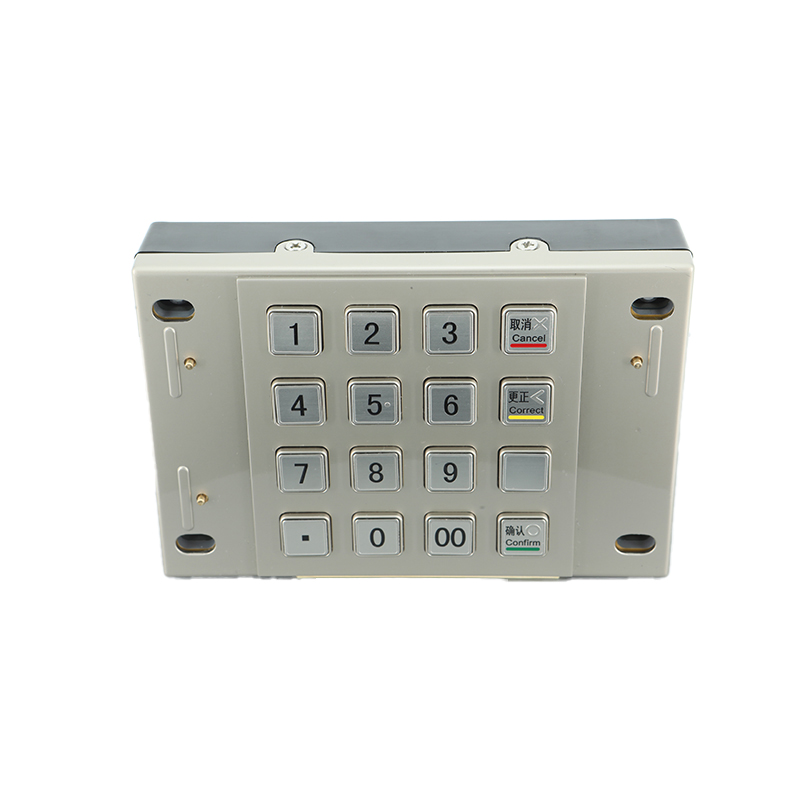

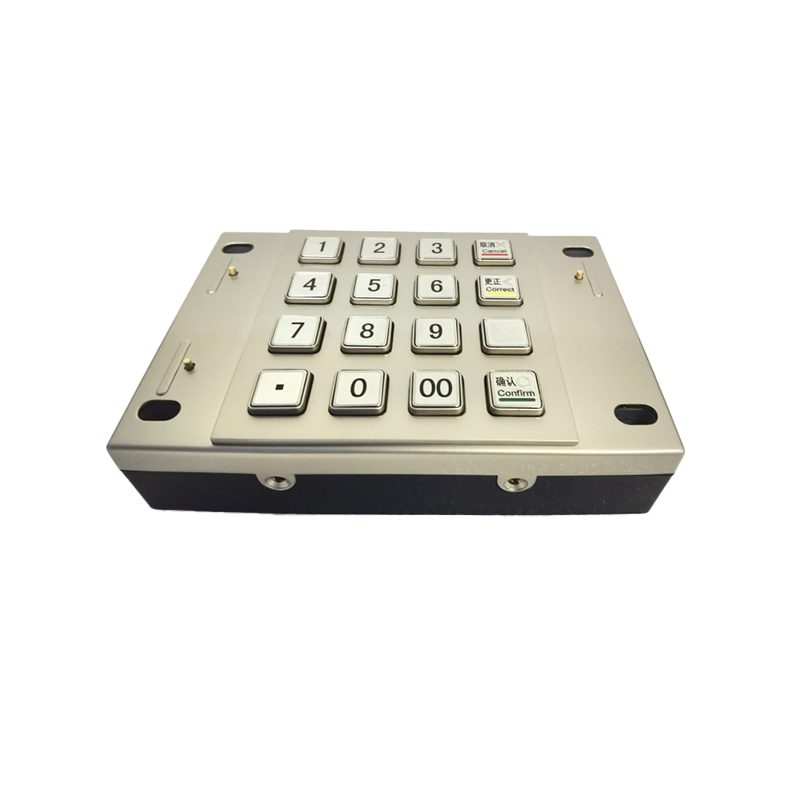

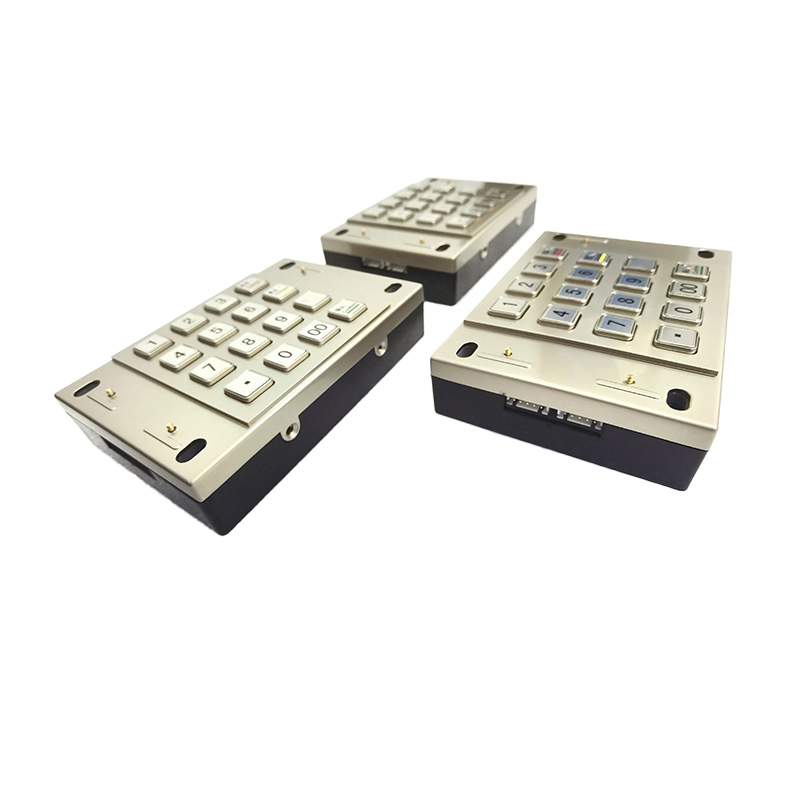

This series of products is a special metal PINpad. This product has a unique design concept, does not need hardware switch to set parameters, so the design adopts the industry-wide version, product compatibility is good. The applicable fields of this product include: ATM, CDM, self-service terminal, kiosk terminal, telecom single machine, ring machine, self-service payment machine, automation equipment, industrial control platform, medical equipment, etc.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements
Performance indicators
1 Basic features
1.1 Support All Windows, Linux, Unix, Mac OSX, Vxworks, Android and other systems
1.2 High quality stainless steel brushed panel
1.3 Dustproof, waterproof, vandal-proof, shockproof, drill-proof, anti-pry-proof
1.4 Passed CE, FCC, ROHS certification
2 Physical properties
2.1 PS/2, RS232, USB (emulated PS/2)
2.2 4×4 keyboard design (10 number keys, 6 function keys)
2.3 Panel size: 91.5*87.5mm
3 Mechanical properties
3.1 Key life up to: more than 2,000,000 times.
3.2 Key pressure: 3-5 N (Newton).
3.3 Key travel: 0.45mm.
3.4 Key material: stainless steel.
3.5 Panel material: stainless steel.
3.6 Power consumption: <1W (dynamic), <200mW (static
4 Environmental adaptability
4.1 Protection level: IP65 static / IP54 dynamic
4.2 Working temperature: -20°C~+60°C
Humidity: 30~90% (under normal conditions)
4.3 Storage temperature: -30°C~+70°C
Humidity: 20~95% (no condensation)
4.4 Atmospheric pressure: 60~106 Kpa
4.5 Salt spray test: GJB-150.11A-2009
