Product Model: KMY299B Product Size: 330mm*100mm Product Description: KMY299D-G waterproof, dustproof and vandal-proof stainless steel metal industrial keyboard, built-in industrial-grade gold immersion PCB control board, with mechanical ball module, sensitive and durable. The keyboard is a 65-key compact layout, using silicone convex key technology, key 2.0mm stroke, appropriate touch, fast and accurate input, the product can also work normally in harsh environments. Applicable fields: self-service terminals, kiosk terminals, telecom single-handers, etc.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements

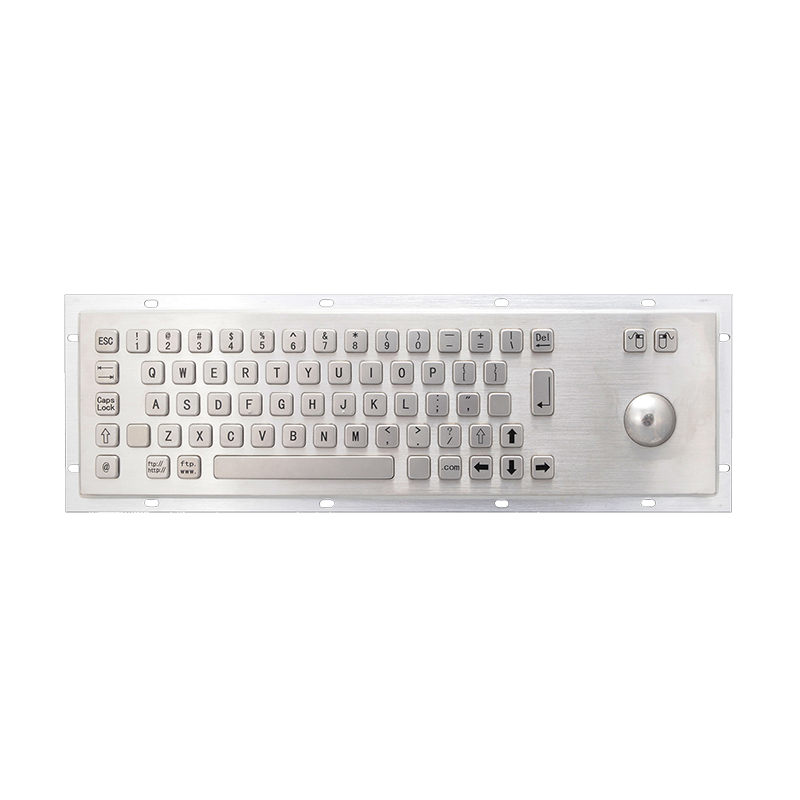

Product model: KMY299B
Product size: 392mm*110mm
Product description: KMY299B waterproof, dustproof and vandal-proof stainless steel metal industrial keyboard, built-in industrial-grade gold immersion PCB control board, with mechanical ball module, sensitive and durable. The keyboard is a compact layout of 64 keys, using silicone convex key technology, 2.0mm stroke of the keys, appropriate touch, fast and accurate input, and the product can also work normally in harsh environments.
Applicable fields: self-service terminals, kiosk terminals, telecom singles, automation equipment, industrial control platforms, medical equipment, etc
Basic instructions
Support All Windows, Linux, Unix, Mac OSX, Vxworks, Android and other systems
● Comply with ISO/IEC 9995, GB/T14081 standards
● High quality stainless steel brushed panel
● Dustproof, waterproof, vandal-proof, anti-prying
Physical properties
●Interface: Ps/2 or USB optional
● Keys: 64 keys
●With trackball module (including 2 mouse left and right buttons)
●Key strength: 14*14mm force 2-3N, 14*20mm force 3-4N, 14*75mm force 4-5N (Newton)
● Key travel: >2.0mm
●Weight: 1.6Kg
Mechanical properties
● Keyboard life: > 2,000,000 times per key
● Activation thrust: 65G
● Dustproof and waterproof protection level: IP65
● Vandal protection level: IK07
● MTBF: More than 20,000 hours
● Average time to repair (MTTR): < less than 30 minutes
Environmental adaptability
● Protection level: IP65 static / IP54 dynamic
● Recommended working temperature: -20°C~+70°C (industrial grade) -40°C~+80°C (military grade) Relative humidity: 30%~90%RH (under normal conditions)
● Storage temperature: -25°C~+100°CRelative humidity: 20%~95%RH (no condensation)
● Atmospheric pressure: 60~106 Kpa
● Salt spray test: GJB-150.11A-2009
Instructions for use and test methods:
PS/2 Interface Products:
1. Plug the ps/2 port into the keyboard port of the PC computer, it is recommended to restart the computer to ensure reliable operation.
2. Open Notepad in Windows.
3. Carry out the key test, the key value pressed will be displayed in Notepad (except for function keys).
USB interface products:
1. Plug the USB interface on the front or rear USB interface of the PC. (hot-swappable)
2. Open Notepad in Windows and prepare for the test.
3. Carry out the key test, the key value pressed will be displayed in Notepad (except for function keys).
