Professional customization

Product model: KMY299H-T

Product size: 478mm*135mm

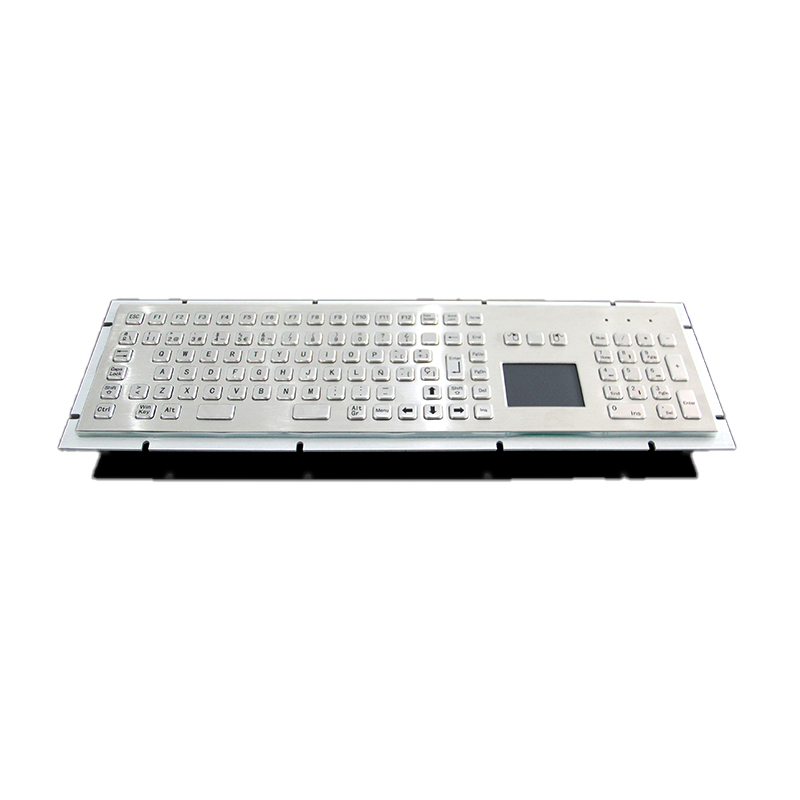

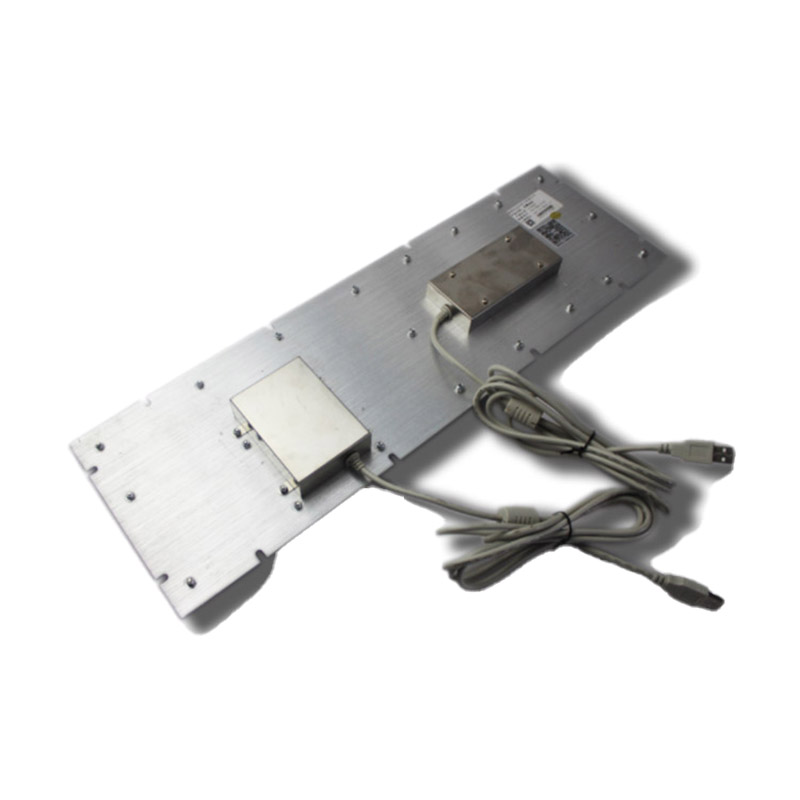

Product description: KMY299H-T waterproof dustproof and vandal-proof stainless steel metal full-function industrial keyboard, built-in industrial-grade gold-plated pot board PCB control board, with a diameter of 60*45mm touchpad module, +400DPI resolution for accurate and fast cursor positioning, any direction can be operated and installed, the operation feels comfortable and smooth and noiseless, with 12 function keys FN (F1, F2... F11, F12), and with independent small number keypad, 105 keys compact layout for stable and precise input. The rear aluminum plate with fixed mounting hole, the lower installation mode, and the installation is simple and convenient; Suitable for working in harsh environments.

Applicable fields: self-service terminals, kiosk terminals, telecom singles, automation equipment, industrial control platforms, medical equipment, etc

Basic instructions

● Support WIN XP, WIN7, WIN8, WIN10, Linux, Android system

● Comply with ISO/IEC 9995, GB/T14081 standards

● High quality stainless steel brushed panel

● Dustproof, waterproof, vandal-proof, anti-prying

Physical properties

● Interface: Ps/2 or USB optional

● Keys: 105 keys

● With touchpad module (including mouse left, center, right 3 buttons)

● Key pressure: 14*14mm force 2-3N, 14*20mm force 3-4N (Newton)

● Key travel: >2.0mm

● Weight: 2.35Kg

Mechanical properties

● Keyboard life: > 2,000,000 times per key

● Activation thrust: 65G

● Dustproof and waterproof protection level: IP65

● MTBF: More than 20,000 hours

● Average time to repair (MTTR): < less than 30 minutes

Environmental adaptability

● Protection level: IP65 static / IP54 dynamic

● Recommended working temperature: -20°C~+70°C (industrial grade) -40°C~+80°C (military grade) Relative humidity: 30%~90%RH (under normal conditions)

● Storage temperature: -25°C~+100°CRelative humidity: 20%~95%RH (no condensation)

● Atmospheric pressure: 60~106 Kpa

● Salt spray test: GJB-150.11A-2009
