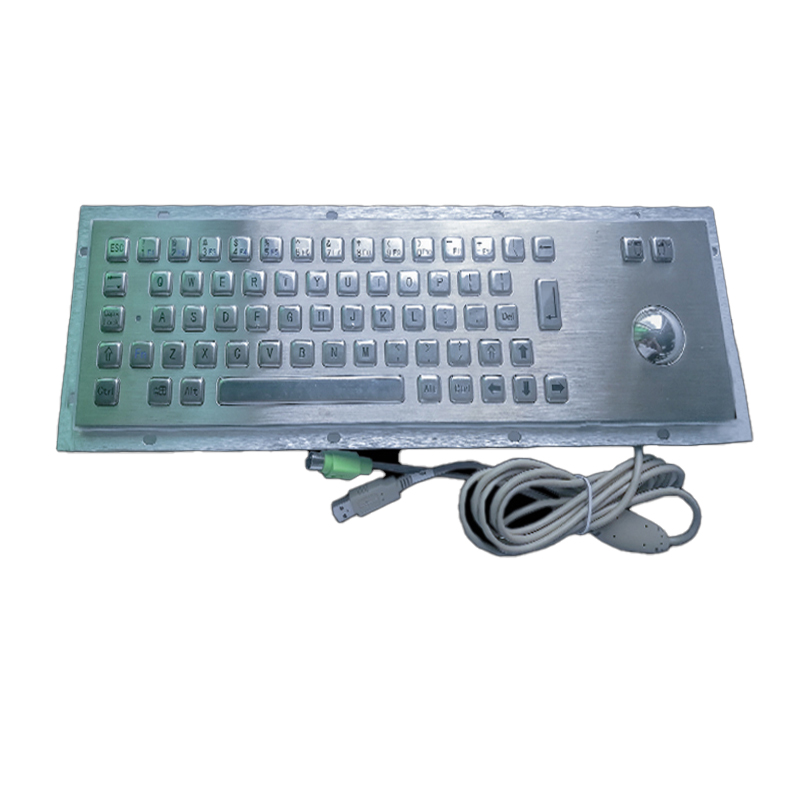

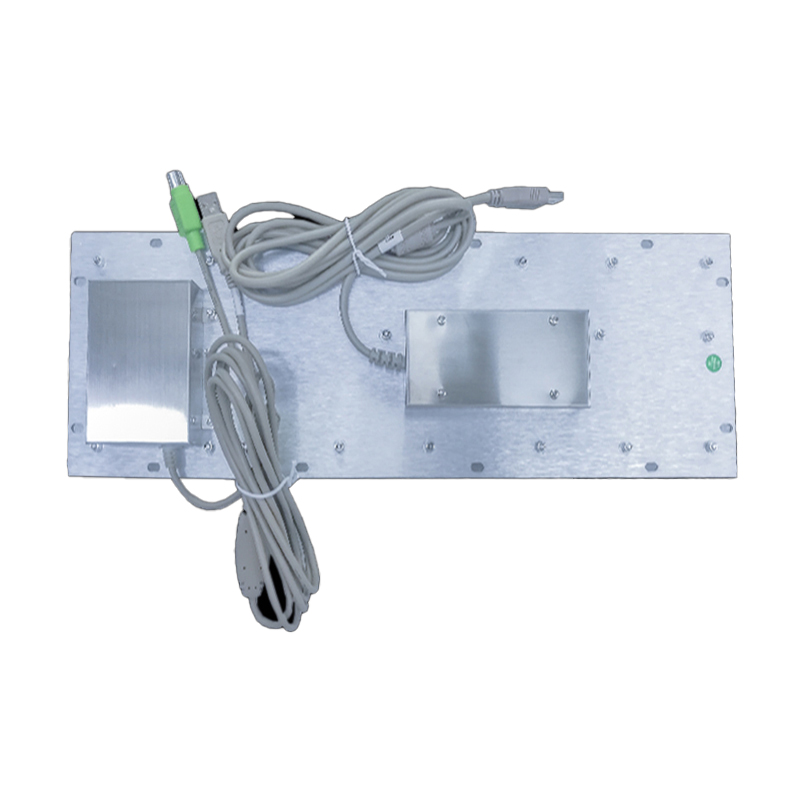

Product Model: KMY299B-1 Product Size: 330mm*100mm Product Description: KMY299D-G waterproof, dustproof and vandal-proof stainless steel metal industrial keyboard, built-in industrial-grade gold immersion PCB control board, with mechanical ball module, sensitive and durable. The keyboard is a 65-key compact layout, using silicone convex key technology, key 2.0mm stroke, appropriate touch, fast and accurate input, the product can also work normally in harsh environments. Applicable fields: self-service terminals, kiosk terminals, telecom single-handers, etc.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements
Product model: KMY299B-1
Product size: 400mm*124mm
Applicable fields: self-service terminals, kiosk terminals, telecom singles, automation equipment, industrial control platforms, medical equipment, etc
Basic instructions
Support All Windows, Linux, Unix, Mac OSX, Vxworks, Android and other systems
● Comply with ISO/IEC 9995, GB/T14081 standards
● High quality stainless steel brushed panel
● Dustproof, waterproof, vandal-proof, anti-prying
Physical properties
● Ps/2 or USB
● 65 keys
●With trackball module (including 2 mouse left and right buttons)
Mechanical properties
● Keyboard life: > 2,000,000 times per key
● Activation thrust: 65G
● Key pressure: 0.8-1.6 N (Newton)
● Key travel: >1.5mm
● Dustproof and waterproof protection level: IP65
● Vandal protection level: IK07
● MTBF: More than 20,000 hours
● Average time to repair (MTTR): < less than 30 minutes
Environmental adaptability
● Protection level: IP65 static / IP54 dynamic
● Recommended working temperature: -20°C~+70°C (industrial grade) -40°C~+80°C (military grade) Relative humidity: 30%~90%RH (under normal conditions)
● Storage temperature: -25°C~+100°CRelative humidity: 20%~95%RH (no condensation)
● Atmospheric pressure: 60~106 Kpa
● Salt spray test: GJB-150.11A-2009
