Product Model: KMY299C Product Size: 330mm*100mm Product Description: KMY299D-G waterproof, dustproof and vandal-proof stainless steel metal industrial keyboard, built-in industrial-grade gold immersion PCB control board, with mechanical ball module, sensitive and durable. The keyboard is a 65-key compact layout, using silicone convex key technology, key 2.0mm stroke, appropriate touch, fast and accurate input, the product can also work normally in harsh environments. Applicable fields: self-service terminals, kiosk terminals, telecom single-handers, etc.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements

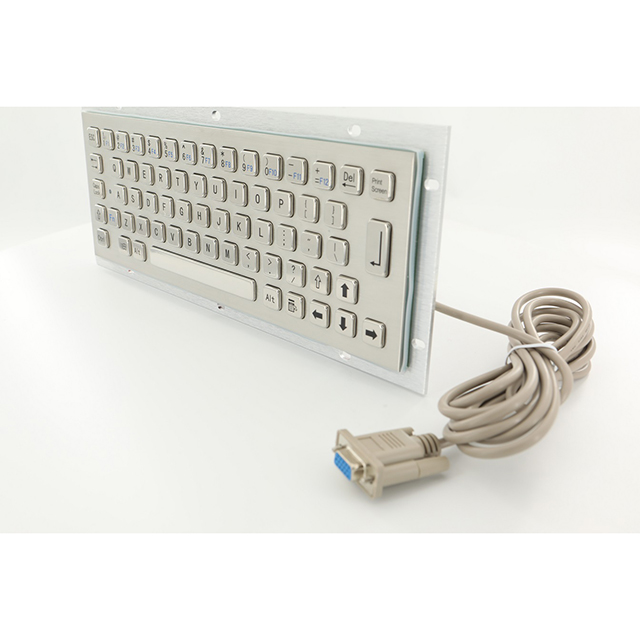

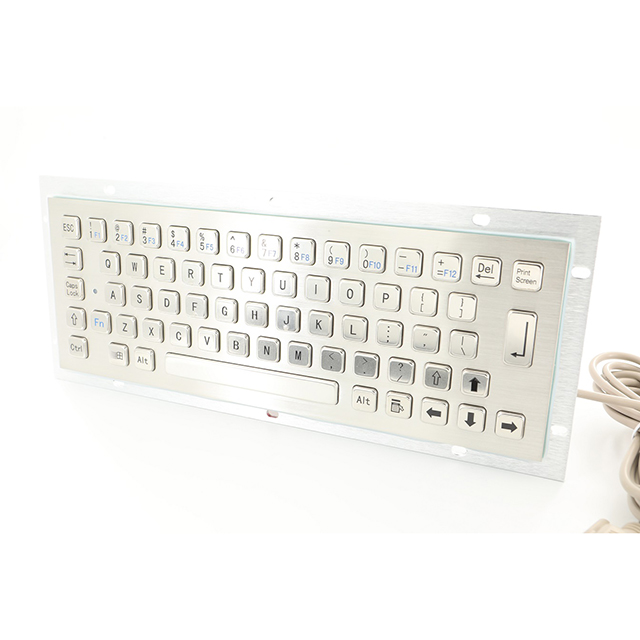

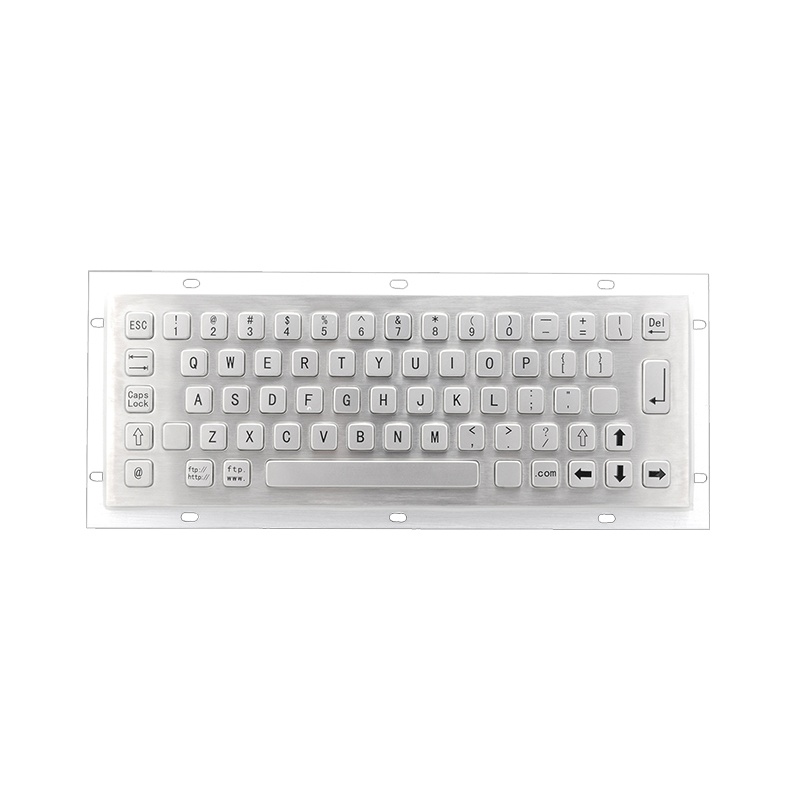

Product model: KMY299C
Product size: 300 ×110mm
Product description: KMY299C waterproof, dustproof and vandal-proof stainless steel metal industrial keyboard, built-in fully sealed and reinforced industrial-grade gold PCB control board, 64 keys reasonable layout, using silicone convex key technology, 2.0mm long key travel, comfortable touch, fast and accurate input; Front stainless steel face side mounting nails and built-in seals for fully sealed reinforcement and waterproofing of keyboards and cabinets for outdoor and extreme environments.
Basic instructions
Supports All Windows, Linux, Unix, Mac OSX, Vxworks, Android and other systems
Comply with ISO/IEC 9995, GB/T14081 standards
High quality stainless steel brushed panel
Dustproof, waterproof, vandal-proof, anti-prying
Physical properties
Front panel: high quality stainless steel
Rear panel: aluminum plate
Keys: High quality stainless steel
Panel: 300 ×110mm
Interface: PS/2 or USB optional
Key travel: 2.0mm
Mechanical properties:
Operating temperature: -10° to +50°
Storage ambient temperature: -30°C to +80°C
Relative humidity: 30% to 95%
Atmospheric pressure: 50 to 110 kPa
Lifespan: 2 million operations > each key
Key pressure: 14*14mm force 2-3N, 14*20mm force 3-4N, 14*75mm force 4-5N (Newton)
Weight: 1.2kg
Electrical properties:
Voltage: 5.0VDC±5%
Current: 10mA
EMC radiation: EN55022(B)
Reliability:
MTBF> 20,000 hours
MTTR: < 30 minutes
CE, FCC, RoHS standards
Waterproof, dustproof rating: IP65
Vandal protection: IK07
Environmental adaptability
● Protection level: IP65 static / IP54 dynamic
● Recommended working temperature: -20°C~+70°C (industrial grade) -40°C~+80°C (military grade) Relative humidity: 30%~90%RH (under normal conditions)
● Storage temperature: -25°C~+100°CRelative humidity: 20%~95%RH (no condensation)
● Atmospheric pressure: 60~106 Kpa
● Salt spray test: GJB-150.11A-2009
Instructions for use and test methods:
PS/2 Interface Products:
1. Plug the ps/2 port into the keyboard port of the PC computer, it is recommended to restart the computer to ensure reliable operation.
2. Open Notepad in Windows.
3. Carry out the key test, the key value pressed will be displayed in Notepad (except for function keys).
USB interface products:
1. Plug the USB interface on the front or rear USB interface of the PC. (hot-swappable)
2. Open Notepad in Windows and prepare for the test.
3. Carry out the key test, the key value pressed will be displayed in Notepad (except for function keys).
