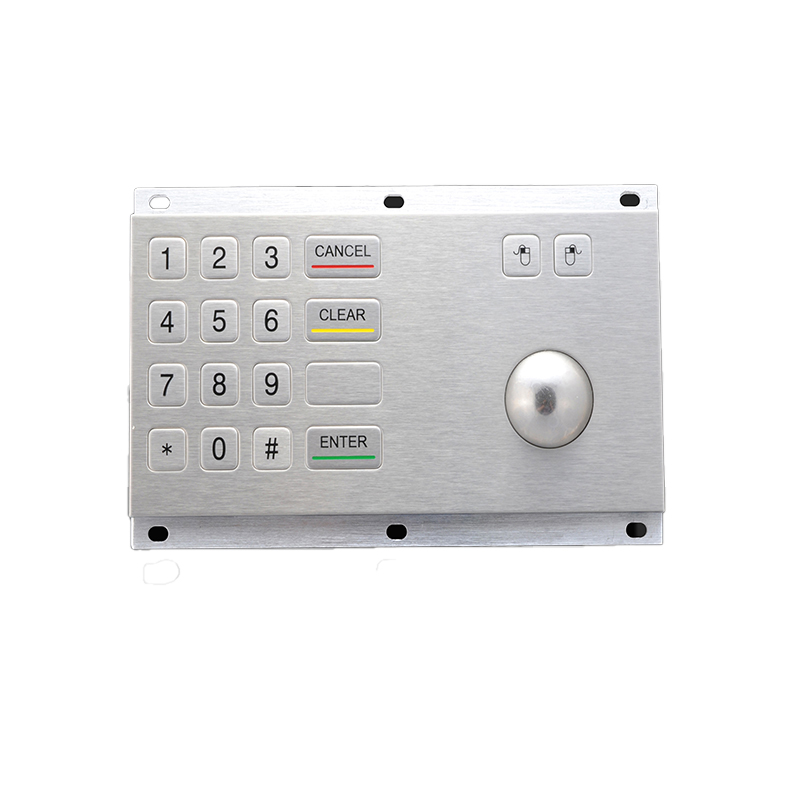

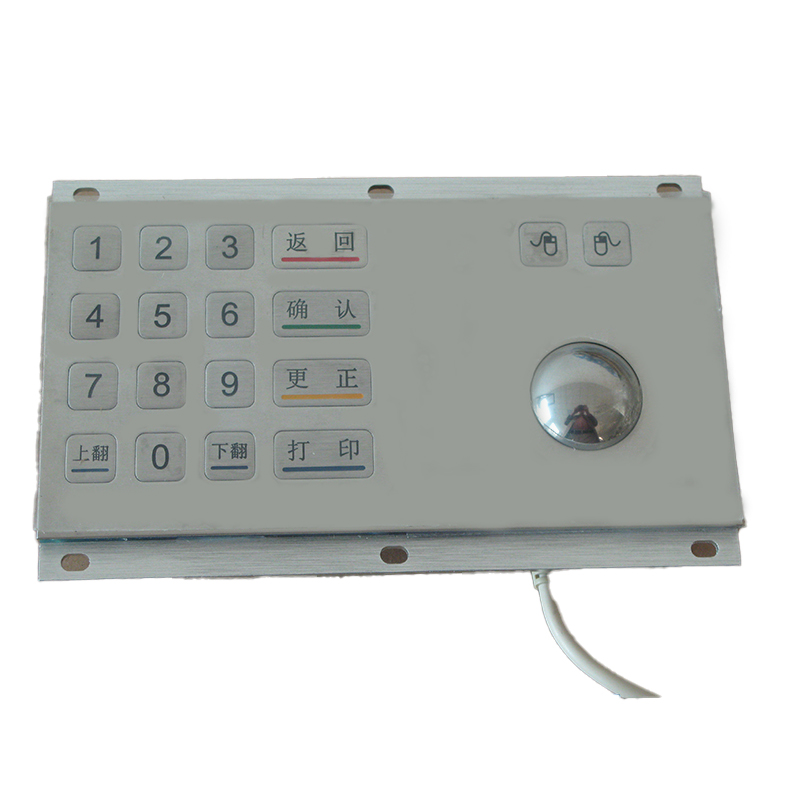

This series of products is a multifunctional non-encrypted keypad with trackball. This product has a unique design concept, does not need hardware switch to set parameters, so the design adopts the industry-wide version, product compatibility is good. The applicable fields of this product include: ATM, CDM, self-service terminal, kiosk terminal, telecom single machine, ring machine, self-service payment machine, automation equipment, industrial control platform, medical equipment, etc.
Professional customization
Can quickly carry out scheme design and product customization according to customer requirements
Performance indicators
1 Basic features
1.1 Support All Windows 95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX and other systems
1.2 High-quality stainless steel brushed panel, can be output of any character according to customer requirements, and customize each Chinese
1.3 Dustproof, waterproof, vandal-proof, shockproof, drill-proof, anti-pry-proof
1.4 Passed CE, FCC, ROHS certification
2 Physical properties
2.1 PS/2, RS232, USB (emulated PS/2)
2.2 Reserve external function keys (optional)
2.3 4×4 keyboard design (10 numeric keys, 6 function keys)
2.4 Trackball diameter 38mm ● Panel size: 196x100mm
3 Mechanical properties
3.1 Keyboard life: > 2,000,000 times per key
3.2 Key pressure: 3-5 N (Newton)
3.3 Key travel: >0.45mm
3.4 Power consumption: <1W (dynamic), <200mW (static)
4 Environmental adaptability
4.1 Protection level: IP65 static / IP54 dynamic
4.2 Working temperature: -20°C~+60°C Humidity: 30~90% (under normal conditions)
4.3 Storage temperature: -30°C~+70°C Humidity: 20~95% (no condensation)
4.4 Atmospheric pressure: 60~106 Kpa
5 Software Support
5.1 Support a variety of algorithms DES, TDES, RSA, DUKPT
5.2 Support WOSA 3.0, with SP-related materials and development libraries
5.3 Some special algorithms can be integrated according to customer requirements
5.4 Any character output can be made according to customer requirements
5.5 Customers will be fully supported in the development of EPPs
